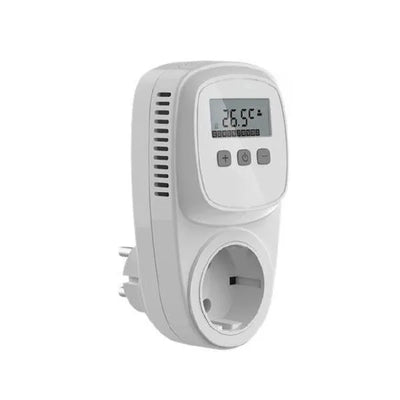

IM Thermostat Plug-in TH200 16A

The easiest way to use your infrared heating panel or conventional heating immediately is with the plug-in thermostat with room temperature sensor. You only have to plug the thermostat into the socket and then plug the infrared panel or central heating plug into the thermostat. It is not possible to program with this Plug-In thermostat.

With this model, you can easily set a temperature between 5 and 45 degrees Celsius. It is also very suitable for use in frost protection! (set the temperature to 5 degrees)

Applications

- All infrared heating panels

- Conventional heating & central heating

Technical data

- Connection voltage: 230Vac ("plug-in" model)

- Output voltage: 230Vac

- IP value: 20

- Switching capacity: 3600VA (16A) with a resistive load

- On/off switch: yes

- Temperature setting: 5 ~ 45°C, adjustable with the push buttons

- Temperature measurement: room, via internal sensor

- Self-regulating / Optimizing: no/no

- Frost protection: no

- Display: set temperature, temperature to be measured, heating

- Sensor monitoring: yes.

- Dimensions: 125 x 70 x 39mm, display 37 x 16mm

- Color: white/white

- EEPROM: yes. (memory in case of power failure)

- Certification: CE.

- Warranty: 2 years
