Ecosun Infrared panel 400 watt Series K - 150 x 32 cm - White
Buy now, pay later Expected Delivery on - .
Description:
Ecosun Infrared panel - 150 x 32 cm - 330 watts - Wall & Ceiling mounting
This Ecosun infrared panel from Series K is constructed from a metal cassette containing the infrared element, with insulation material on the back.

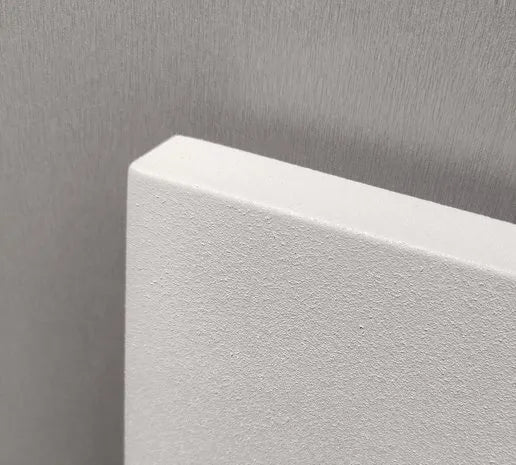

The panel has a coating with fine structured paint, which optimizes heat emission. Thanks to the "Gravelly Snow" coating, this panel is particularly suitable for wall or ceiling mounting, where it integrates almost inconspicuously.
Ecosun has more than 25 years of experience in the production of infrared panels, which guarantees a long lifespan and a high efficiency in heat output.
The panel is equipped with overheating protection and can be easily mounted with the supplied bracket, both on the wall and on the ceiling, for pleasant warmth.
Due to its compact dimensions, the panel is also ideal for local additional heating, for example under a desk. With an IP44 class, the panel is safe and water-resistant, suitable for use in the bathroom.
Infrared heating offers the advantage that the rays heat the environment. Unlike traditional radiators, which circulate warm air, the panel heats the room itself and releases heat into the air. This results in a very comfortable climate, where a pleasant feeling is often achieved even at a lower air temperature. In combination with a good regulation, this can lead to significant savings on heating costs.
The most important features of this infrared panel:
- 150 x 32 x 3.0 cm - 330 watts
- Suitable for wall and ceiling mounting
- Bracket for safe wall and ceiling mounting
- Metal cassette system with internal insulation
- White fine structure coating (Gravelly snow)
- Coating increases the emission of infrared radiation
- Equipped with overheating protection
- IP44 approved
Scope of supply:
- Infrared panel with connection cable without plug (length 150 cm)
- Mounting bracket
- Assembly instruction
Service:
The Ecosun infrared panel is supplied with a connection cable without a plug.
By attaching a plug, the panel can be plugged directly into a suitable socket.
The panel can also be connected to a thermostat using the connection cable.
The advantage of using a thermostat is that it can measure the temperature in the room and the infrared panel will automatically switch on or off, depending on the temperature development.
Some suitable thermostats are listed below as accessories.
For a complete overview of all applicable thermostats for this infrared panel, consult this page .
Technical data:
EAN: 8590875099015
Brand: Ecosun
Series: K
Power: 330 Watt
Dimensions: 150 x 32 x 3cm
IP value: IP44
SUitable for wall mounting: Yes
Suitable for ceiling mounting: Yes
Suitable for suspended ceilings: No
Surface temperature: 80-95 °C
Connection: 230V
Connection cable: 3 core - 150 cm
Material: Aluminum coated with smooth lacquer
Finish: Rimless
Color: White (RAL9016)
Weight: 2.8kg
Special features: With fine structure
Edit:
The Ecosun Series K infrared panel is equipped with overheating protection and can be installed both horizontally and vertically, meaning it can be mounted on both the wall and ceiling.
Installation is carried out safely with the supplied bracket, with which the panel can be hung in a locked position.
The panel can be used both lengthwise and widthwise. With a thickness of approximately 30 mm, the front of the panel, including the bracket, is approximately 50 mm from the ceiling or wall.
The IP rating of this panel is IP44, which means that it is water-resistant and suitable for use in the bathroom, for example.
Required power:
For heating rooms in detached houses or corner houses built after 2000, the following power guidelines can be assumed when using infrared panels as main heating:
- 40 Watts per cubic meter (m³) for living rooms/offices
- 50 Watts per cubic meter (m³) for bathrooms
- 30 Watts per cubic meter (m³) for bedrooms
These figures are average values and serve as a guideline. The required power may vary depending on the type of home and the level of insulation.
When using an infrared panel as local additional heat, there are some specific considerations regarding the placement of the panel and the power required.
Certification & warranty:
Quality marks & Warranty:
- Certificates: CE approved / LCIE standard
- 5 years warranty
FAQ'S
What are the costs of using an infrared panel?
Infrared heating is cost-efficient. The exact consumption depends on factors such as panel power, insulation, and usage pattern.
Example:
A panel of 60x60 cm, with a wattage of 550 Watt uses 0.55 Kilowatt per hour. At an energy price of €0.21 per kilowatt hour, the consumption of this infrared panel amounts to €0.12 per hour. The consumption of this type of panel can be compared with the energy consumption of an average coffee maker.
How much power do I need?
Make sure you choose an infrared panel that suits your power situation.
The following power guidelines can be assumed when using infrared panels as main heating:
- 40 Watts per cubic meter (m³) for living rooms/ offices
- 50 Watts per cubic meter (m³) for bathrooms
- 30 Watts per cubic meter (m³) for bedrooms
Example: Suppose your space is 3x3x2.5 meters. This means a total of 22.5 m3 x 30W = 675W minimum required power. That equates to a panel of at least 700W.
How do I install an infrared panel from InfraredMasters?
Assembly is very easy with the included manual.
An infrared panel can be hung on the wall or on the ceiling.
Are you stuck? Please contact us.
