Ecosun Infrared panel 1000 watt Series E - 120 x 85 cm - White
Buy now, pay later Expected Delivery on - .
Description:

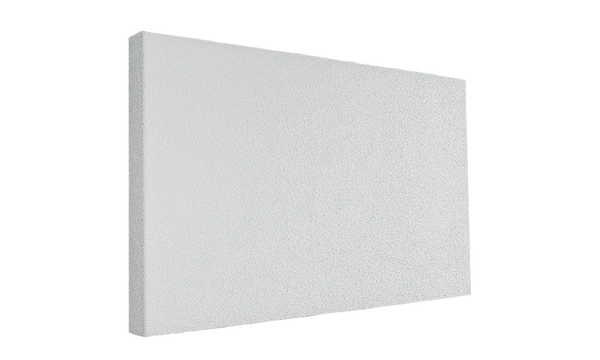

Ecosun infrared panel of 1000 watts with a fine structure coating of 120 x 85 cm - Suitable for mounting on the ceiling

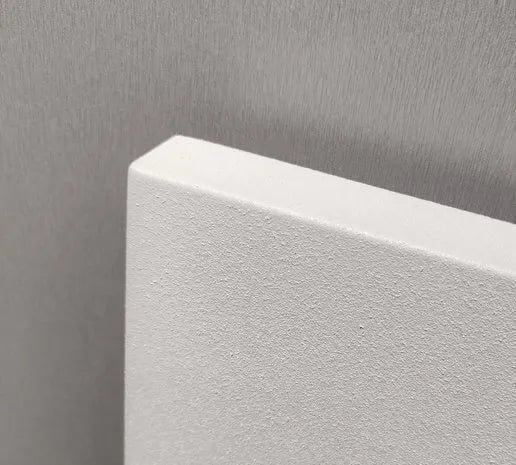

This Ecosun infrared panel from the Series E consists of a metal cassette containing the infrared element and is provided with insulation material on the back. The panel is covered with a fine textured paint, the "Gravelly Snow" coating, which promotes heat release.
Thanks to this coating, the panel is very suitable for ceiling mounting, especially in a suspended ceiling, because it is virtually inconspicuous.
Ecosun has more than 25 years of experience in producing infrared panels, which guarantees a long lifespan and a high heat yield.

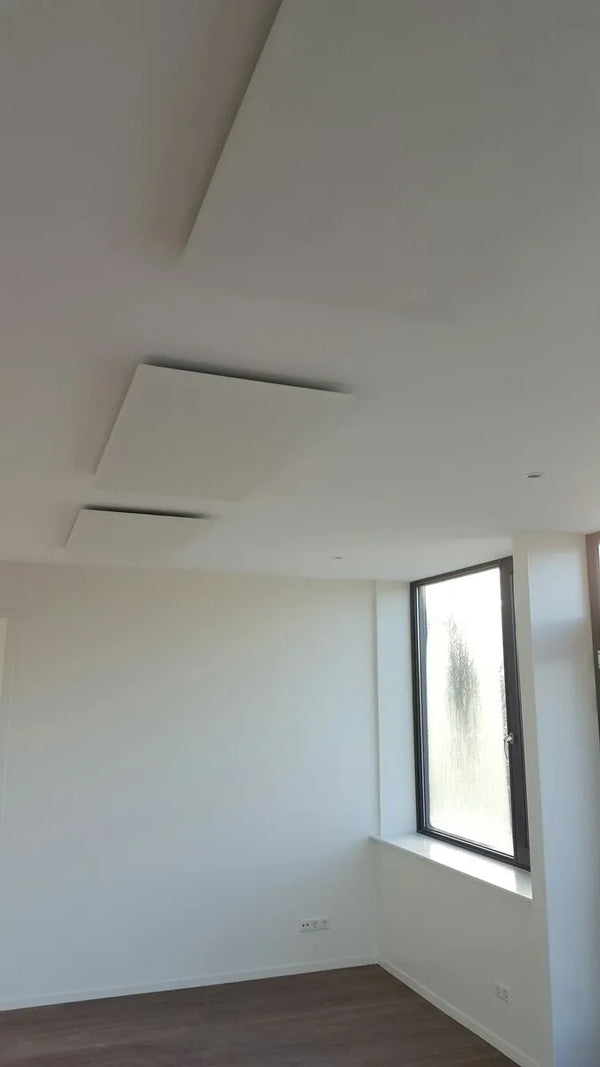

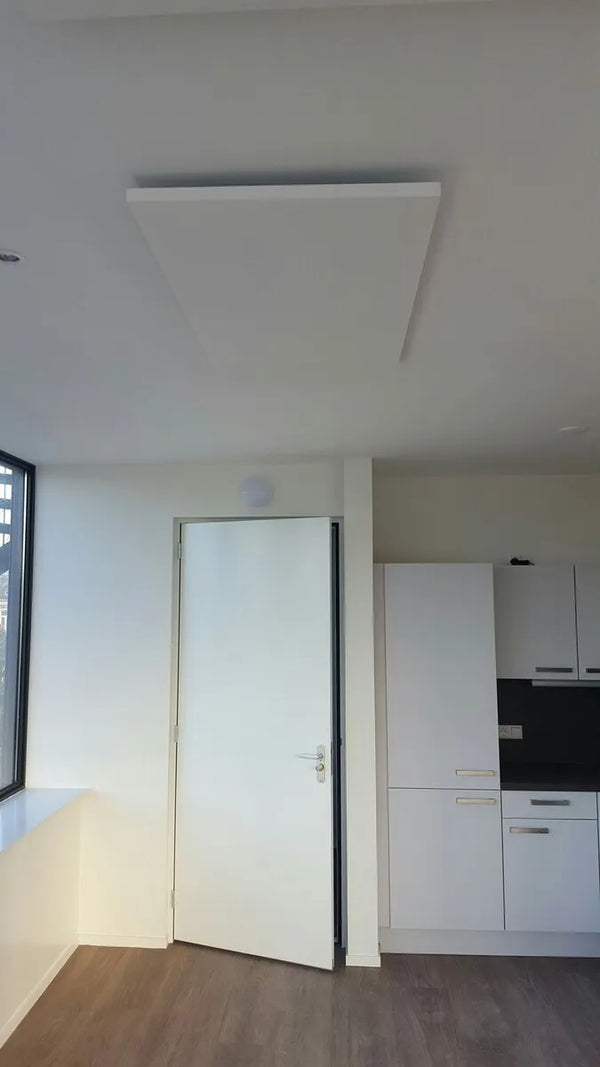

The panel can be placed directly in a suspended ceiling or mounted to the ceiling with the supplied bracket, providing pleasant warmth. This infrared panel has an IP44 class, which makes it safe and water resistant, so it can also be used in the bathroom.
Infrared heating has the advantage that the infrared rays heat the environment. Unlike a traditional radiator, which circulates warm air, the panel heats the room itself and releases heat into the air. This results in a very comfortable climate, in which a pleasant feeling is often achieved with a lower air temperature. In combination with a good regulation, this can lead to significant savings on heating costs.
Scope of supply:
- Infrared panel with connection cable without plug (length 150 cm )
- Mounting bracket
Service:
The Ecosun infrared panel is supplied with a connection cable without a plug.
By attaching a plug, the panel can be plugged directly into a suitable socket.
The panel can also be connected to a thermostat using the connection cable.
The advantage of using a thermostat is that it can measure the temperature in the room and the infrared panel will automatically switch on or off, depending on the temperature development.
Some suitable thermostats are listed below as accessories.
For a complete overview of all applicable thermostats for this infrared panel, consult this page .
Technical data:
Brand: Ecosun
Series: E1000
Power: 7,00 Watts
Dimensions: 1200 x 600 x 30mm
IP value: IP44
Suitable for wall mounting: No
Suitable for ceiling mounting: Yes
Suitable for suspended ceilings: Yes
Protected against overheating: No
Surface temperature: 90-105 °C
Connection: 230V
Connection cable: 3 core - 150 cm
Material: Metal cassette system with internal insulation
Finish: Rimless
Color: White (RAL9016)
Weight: 5.8kg
Special features: With fine structure
Edit:
The Ecosun Series E infrared panel is specifically designed for horizontal installation, allowing it to be mounted on the ceiling.
Ceiling mounting is done safely with the supplied mounting bracket, in which the panel is hung in a locked manner.
The Ecosun Series U is available for wall mounting, with comparable capacities.
The panel is approximately 30mm thick, and including the bracket the front of the panel is approximately 50mm below the ceiling.
The IP rating of this panel is IP44, which means it is water resistant and suitable for applications such as the bathroom.
Required power:
For heating rooms in detached houses or corner houses built after 2000, the following power guidelines can be assumed when using infrared panels as main heating:
- 40 Watts per cubic meter (m³) for living rooms/offices
- 50 Watts per cubic meter (m³) for bathrooms
- 30 Watts per cubic meter (m³) for bedrooms
These figures are average values and serve as a guideline. The required power may vary depending on the type of home and the level of insulation.
When using an infrared panel as local additional heat, there are some specific considerations regarding the placement of the panel and the power required.
Certification & warranty:
Quality marks & Warranty:
- Certificates: CE approved / LCIE standard
- 5 years warranty
InfraroodMasters Quality
Energy efficient heating
Heat your space efficiently and save on energy costs with our energy-efficient infrared panels.
Healthy and Comfortable Indoor Climate
Create a healthy indoor climate with even heat distribution and reduced air circulation.
Safe and Durable
The panel is equipped with overheat protection and made from high-quality materials, ensuring both safety and longevity.
Stylish Design
The infrared panel features an elegant and modern white design, seamlessly fitting into any interior and providing a luxurious appearance.
RECENTLY VIEWED PRODUCTS
FAQ'S
What are the costs of using an infrared panel?
Infrared heating is cost-efficient. The exact consumption depends on factors such as panel power, insulation, and usage pattern.
Example:
A panel of 60x60 cm, with a wattage of 550 Watt uses 0.55 Kilowatt per hour. At an energy price of €0.21 per kilowatt hour, the consumption of this infrared panel amounts to €0.12 per hour. The consumption of this type of panel can be compared with the energy consumption of an average coffee maker.
How much power do I need?
Make sure you choose an infrared panel that suits your power situation.
The following power guidelines can be assumed when using infrared panels as main heating:
- 40 Watts per cubic meter (m³) for living rooms/ offices
- 50 Watts per cubic meter (m³) for bathrooms
- 30 Watts per cubic meter (m³) for bedrooms
Example: Suppose your space is 3x3x2.5 meters. This means a total of 22.5 m3 x 30W = 675W minimum required power. That equates to a panel of at least 700W.
How do I install an infrared panel from InfraredMasters?
Assembly is very easy with the included manual.
An infrared panel can be hung on the wall or on the ceiling.
Are you stuck? Please contact us.
